Mixture control 2.

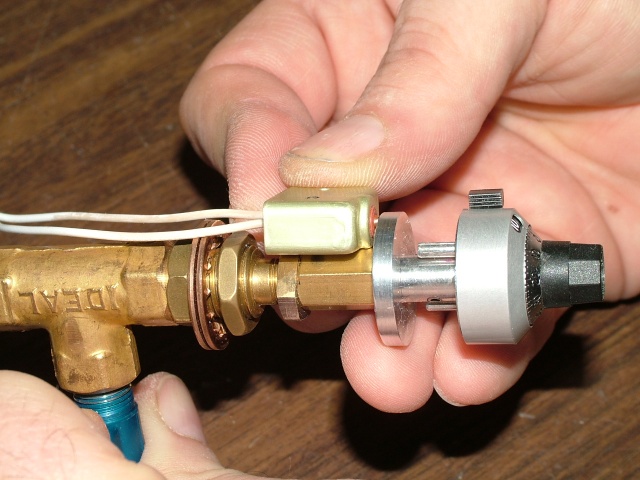

You can see my fabricated aluminum adapter that will actuate switch. Pins are pressed into another adapter in counter to allow movement aft of panel aluminum inserts when needle valve is turned C.C.W. from closed.
