Fuse panel 4.

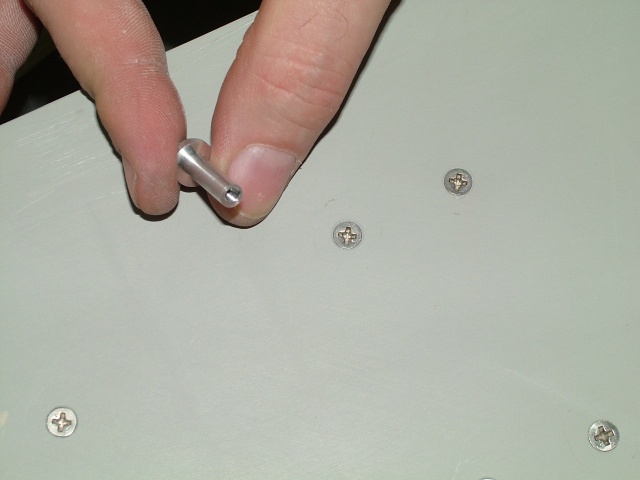

Close up of 6-32 insert. The four panel mounting screws are 10-32 and 7/16" long stainless flat head, (100 degree).
Y10-04-22

Date: 05/02/2009

Size:
Full size: 1280x960

Fuse panel 4.
