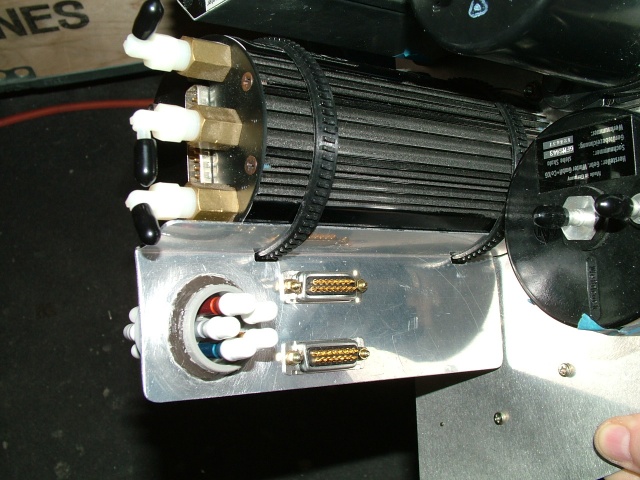

Port instrument insert 1.

In order to allow easier install and removal of port instrument insert, installed two 15 pin panel mount D-Sub solder pot connectors and a 5 port Winter pneumatic connector. The Winter connector is JB KWIKed in place.
Y10-04-22
