Cooling/demist fan 6.

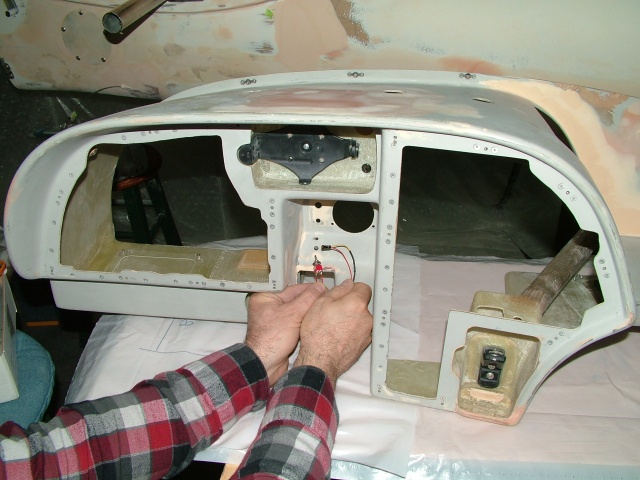

Here is where control switch and indicator goes. The indicator is an amber mini LED from West Marine. Wiring will have 2 parallel fans. Triple throw, double pole switch will have middle off, down low (2 parallel, 2 series, or 6 volts) and up high (all 4 parallel 12 volts).
