Garmin antenna 2.

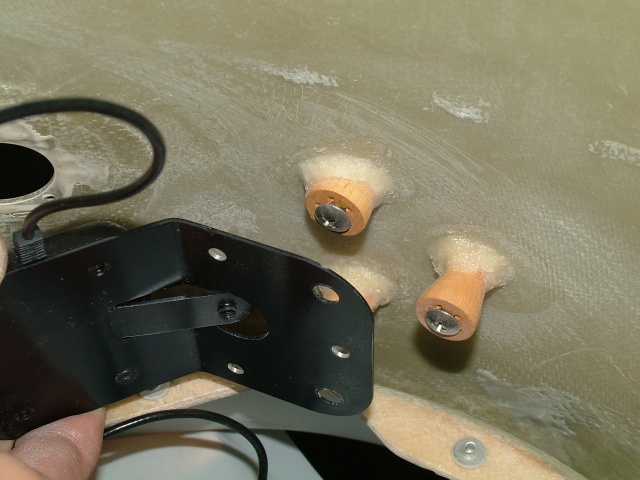

Garmin antenna attachment is drawer handles that have brass inserts. I sanded to get a nice fit, then JB KWIK Welded, then floxed them to instrument module.
Y10-04-22

Date: 05/02/2009
