Garmin antenna 1.

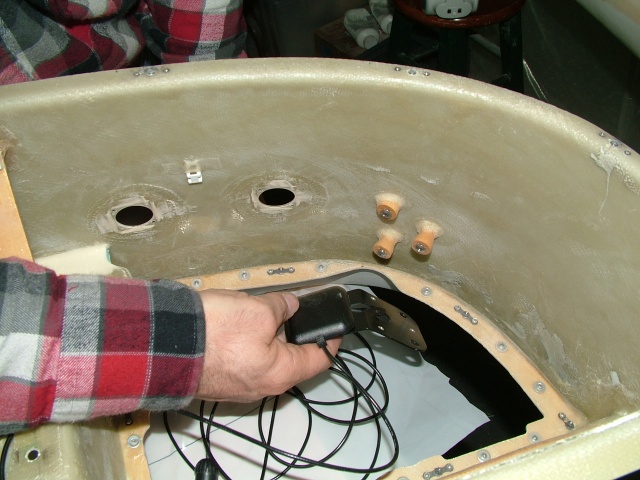

Garmin 296 GPS antenna being mounted to the bottom of the top of the port side instrument module. All ty wrap attachment points in position, (JB KWIK, then 2 thin model aeroplane cloth and a dab of flox).
Y10-04-22

Date: 05/02/2009
