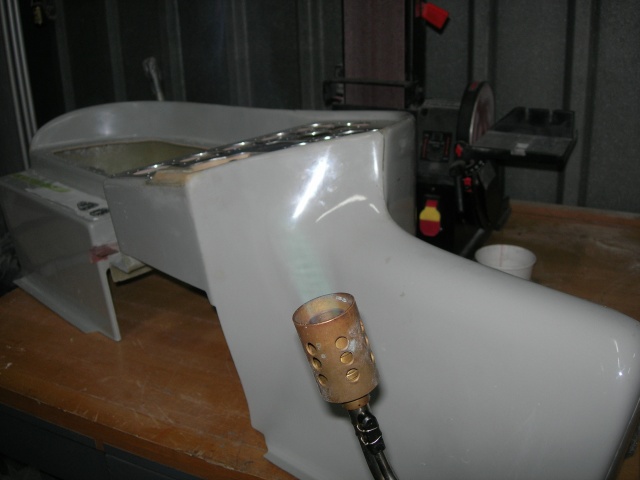

Ready to try and unwarp.

The right side of panel is warped away from firewall by at least 3/4". Here we reinstalled right aluminum insert to hold shape of module better.
