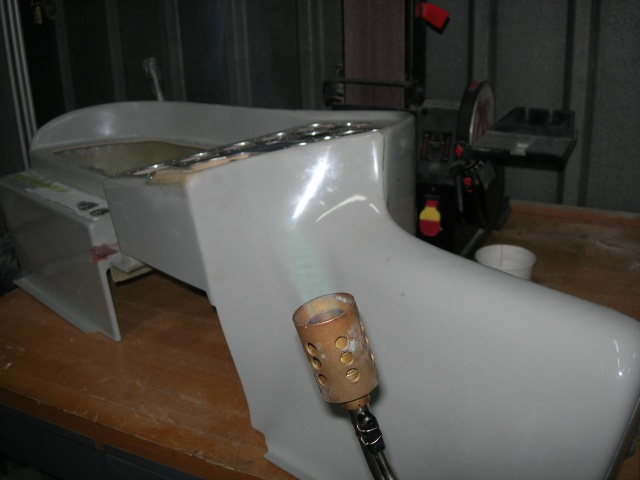

Ready to try and unwarp.

The right side of panel is warped away from firewall by at least 3/4". Here we reinstalled right aluminum insert to hold shape of module better.
Y10-01-16

Date: 01/11/2010
