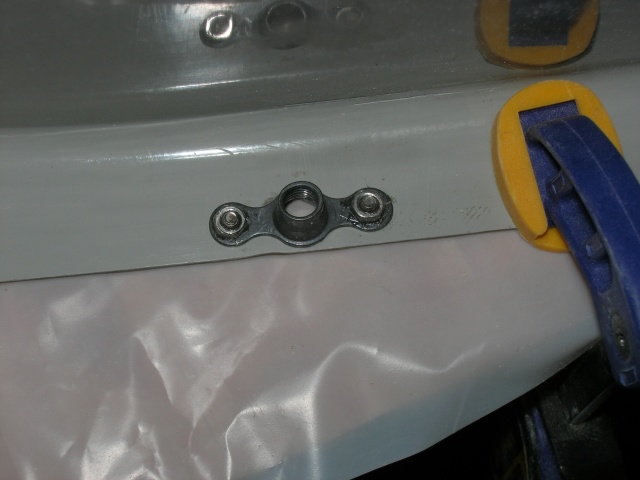

Mounted module with a few screws.

Since the panel is flat from middle going left, mounted with 2 screws. Instead of using ugly pop rivets, using 2-56 flat head stainless screws and nuts with a drop of JB Weld KWIK on threads.
Y10-01-16

Date: 01/11/2010

Size:
Full size: 2592x1944
