Contact area for hardware made flat.

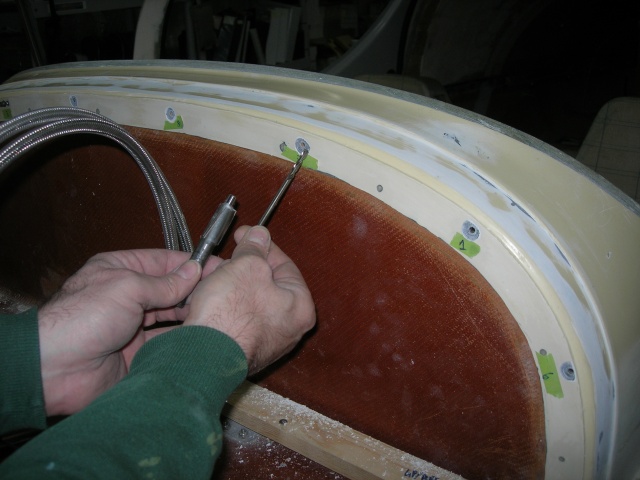

Used a counterbore with the shank of a 3/16" drill as guide to make contact area of instrument module flat.
Y10-01-24

Date: 01/17/2010
