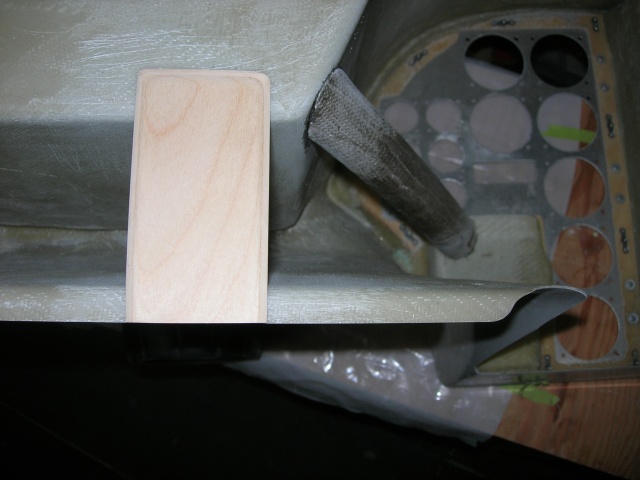

Rib to tie together.

This rib will tie together the top of module to the bottom flange, also act as a mount for bracket.
This shot better shows how tube ties back of radio recess to module.
Y10-01-24

Date: 01/20/2010
