Rib to tie together.

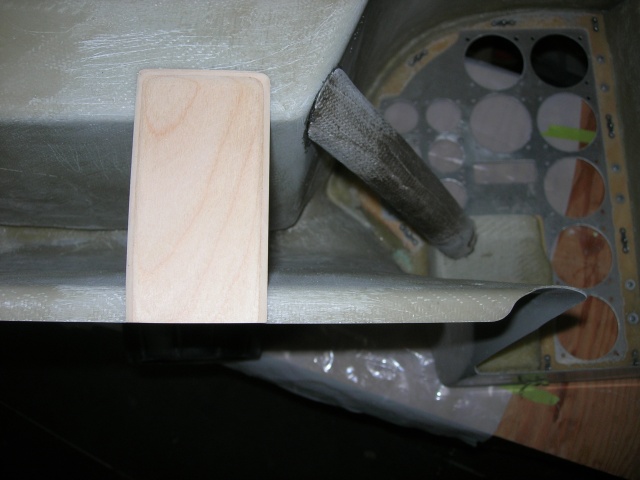

This rib will tie together the top of module to the bottom flange, also act as a mount for bracket.
This shot better shows how tube ties back of radio recess to module.
