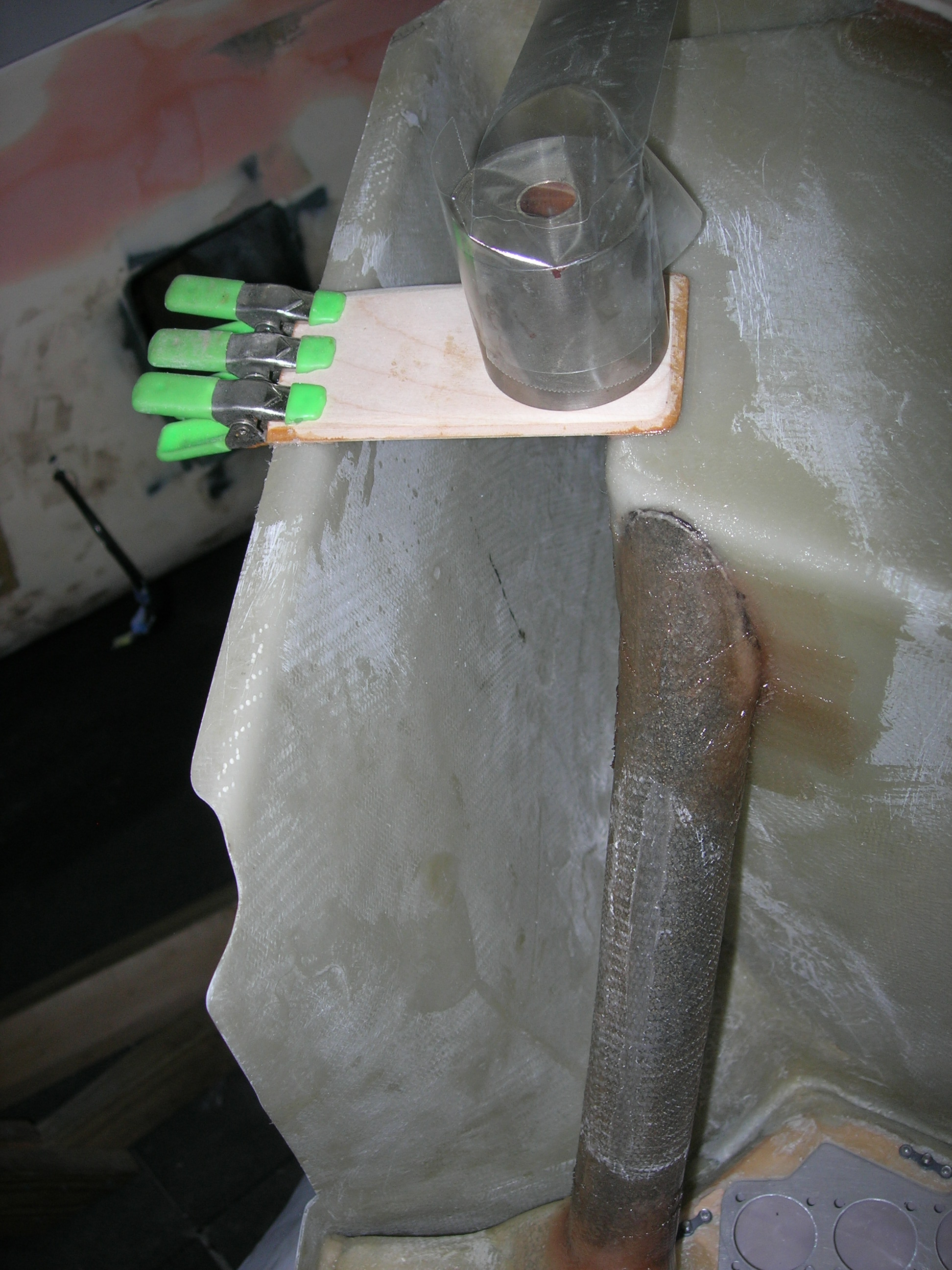

Antenna holder/stengthening tube install begins.

Antenna holder/strengthening tube install complete. It may look a little bit like carbon fiber, but that is because you are looking through Aeropoxy 30 minute/BID at the gray pipe insulation inside.
Very similar installation to third nostril on cowl, where you use a lot of small pieces of BID to make shape.
