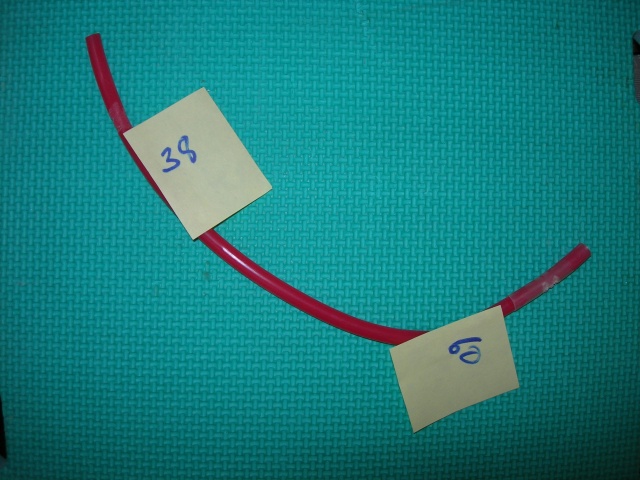

Pneu. tube abraision resistance 1.

Aggressively used Perma-Grit file on Tygon tubing. Putting a single piece of heat shrink tubing over increased ~ 2 fold+ the abrasion resistance.
Y10-06-11

Date: 06/08/2010
