Lower port insert wiring 1.

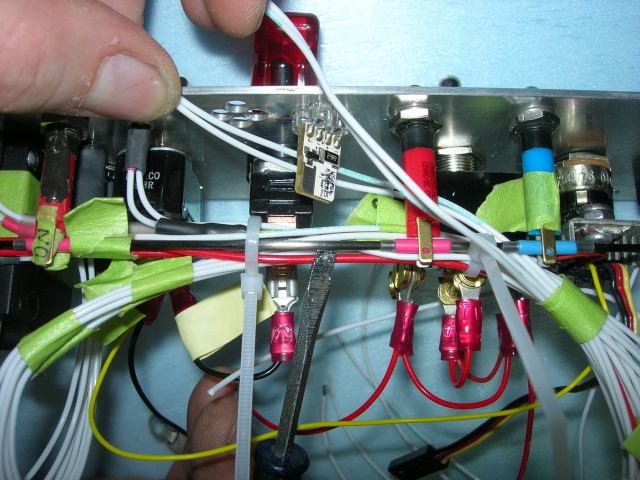

Here I am pointing at a carbon fiber, (CF) rod that is held in place between leads of three bezel mounted LEDs. Since CF is somewhat conductive we put two layers of heat shrink where it contacts LED leads.
This CF rod is used to mount many of the other wires on this insert.
