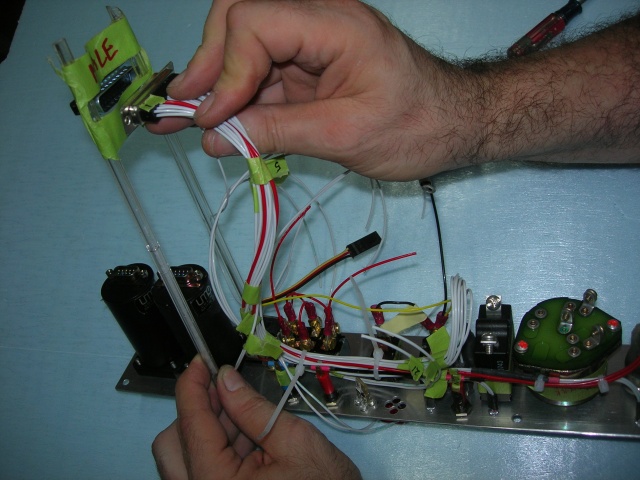

Lower port insert wiring 4.

We fabricated a temporary 25P D-sub connector holder to allow us to "dress" and secure wires, (proper length and routing).
Y10-08-31

Date: 08/31/2010
