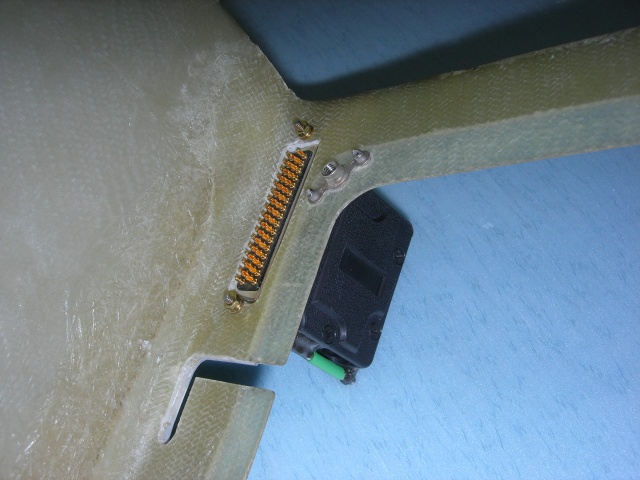

Lower port 50p D-sub 90 degree connector 1.

I received longer hex jack screws, (hard to find). After trimming off a little length, installed them.
Y10-08-31

Date: 08/31/2010

Size:
Full size: 2592x1944
