Mid panel insert 1.

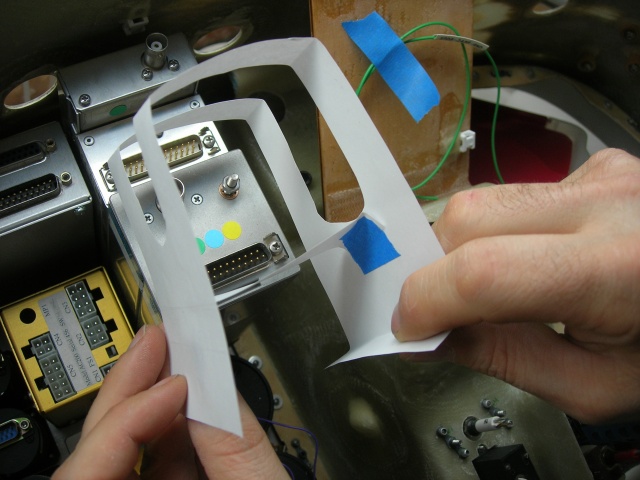

We started thinking about how we are going to mount a 37 pin D-sub connector and four smaller connectors, (a 2, 4 and two 8 pin connectors).
We came up with design for a sheet metal clamp to hold onto the Becker 250 watt mode C transponder.
