Mid panel insert 13.

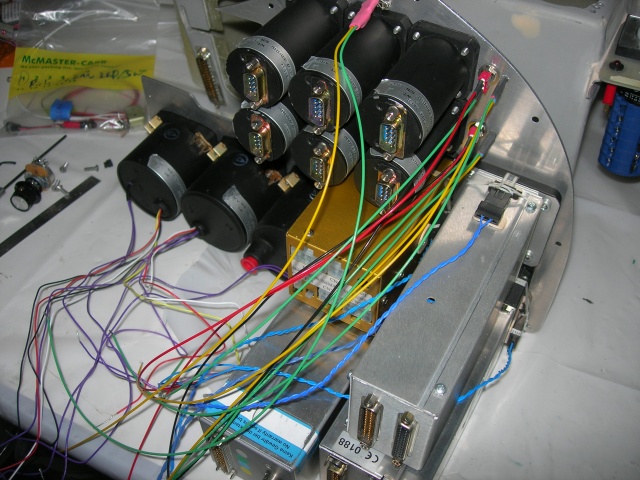

The Transponder, Com, Audio pane and Airmaster prop controller have EL wires in place.
Switches by instruments with LEDs also have wires in place.
