Port insert 6.

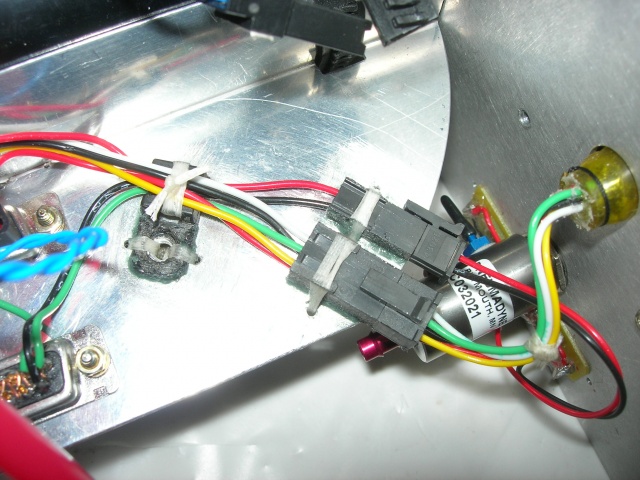

The two connectors and the wire hold down were tied in place with waxed cord after drilling holes in the aluminium plate and a small fillet of Redux / Flox was applied after wetting out with Redux.
