Mid panel insert 22.

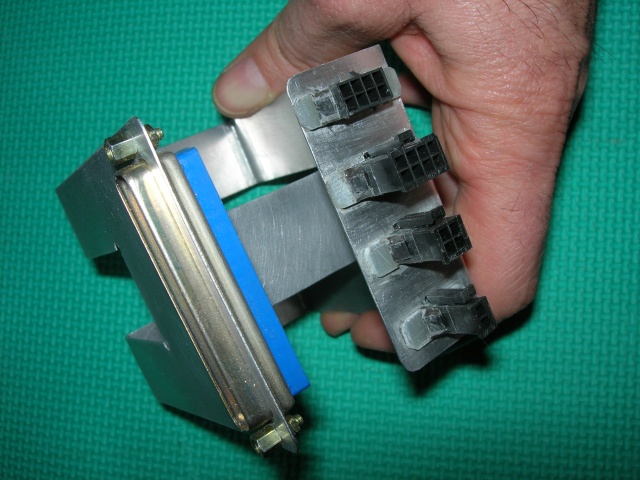

Art completed the 37 pin D-sub bracket and attached four bulkhead connectors.
He's ready to install this bracket on the Becker transponder and and begin wiring up.
Y10-12-31
