N4211W panel 2.

Panel.

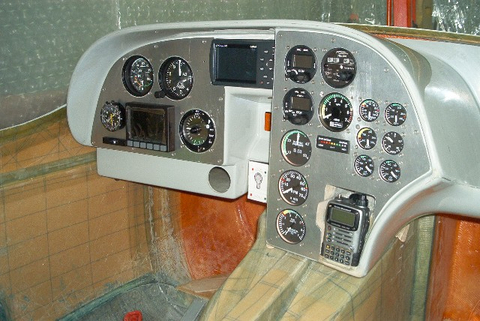

Middle of right panel, temporarily have Rotax tachometer in place of Airmaster controller. Just below where the Airmaster controller will go is our Split Second mixture display that is driven by a Bosch O2 sensor that will TIG in place a stainless bung just downstream of the turbo on muffler. Will have mixture control over 914. Leaning will be accomplioshed by incorporating a leak of float bowl pressured to cross tube "T" via a needle valve. Enrichment by having an emergency rich switch that will actuate enrichment solenoid.

Date: 10/29/2007
Size:
Full size: 640x428
