p2

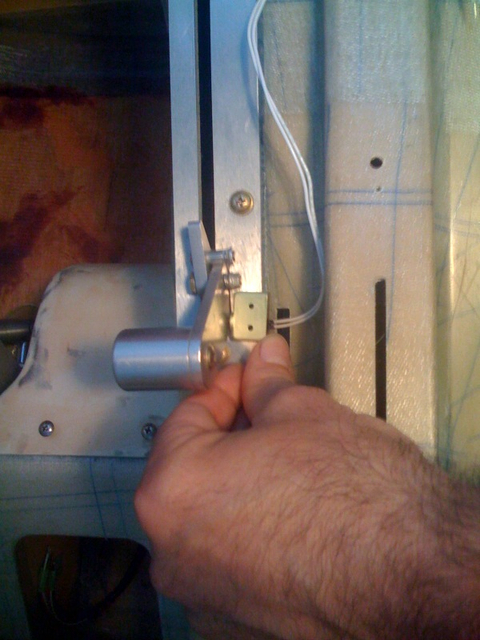

Beautiful sealed downlock switch from our friends at McMaster Carr to be mounted below main gear lever. Y8-10-15
Minds changed, installed a reed switch that senses down latch instead of a micro switch that only detects if lever is in place. Y8-10-27

Date: 10/15/2008
