Pitch_servo_wire

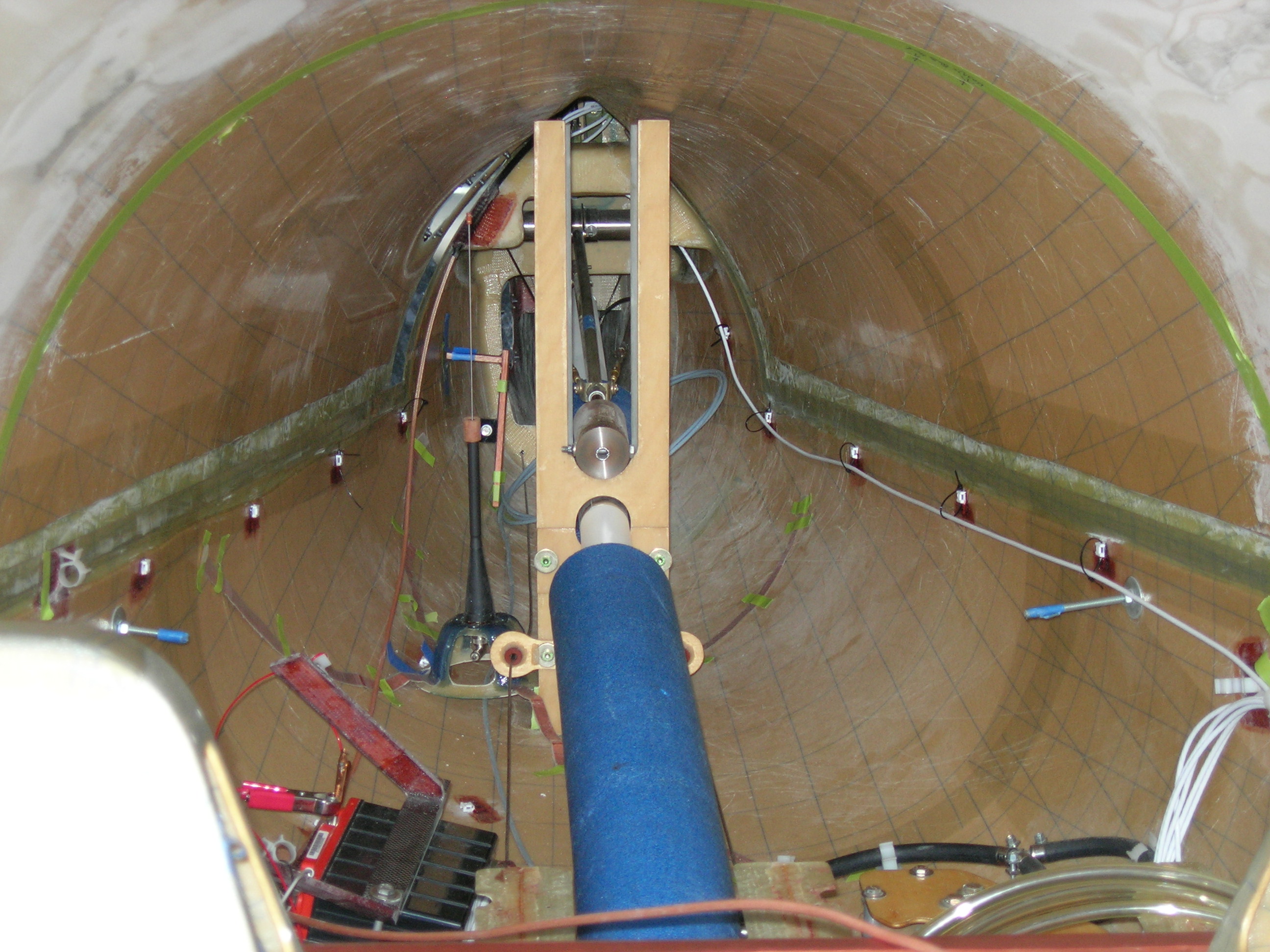

Pitch servo wire now runs to baggage bay bulkhead on Port side of fuse. Have two turns of service loop at the small inspection hole near servo that will be tie wrapped in place but accessible from outside of plane.
Y9-02-17

Date: 02/17/2009
