Servo1

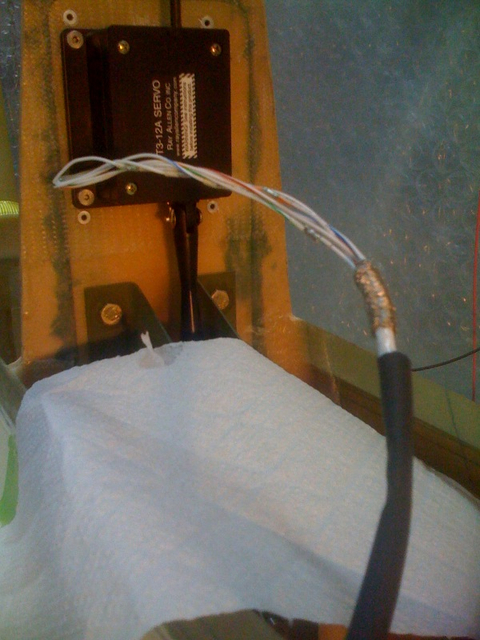

Wiring up pitch servo. Using 5 wire twisted and shielded 22 gauge from Aircraft Spruce (they sell specific for someones ELT). Wayne stagger soldered wires and clear heat shrunk each connection.
