Collar

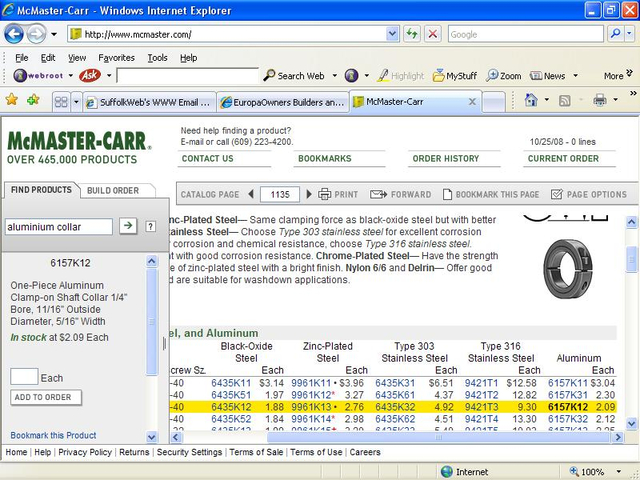

This is the aluminium collar we bonded to back side of throttle housing. Using a thin wall 1/4" x .035" wall aluminium tube obtained from Ace Hardware, (McMaster sells as well), to hold reed switch. Collar allows easy adjustment of tube/reed switch! Y8-10-25

Date: 10/25/2008
