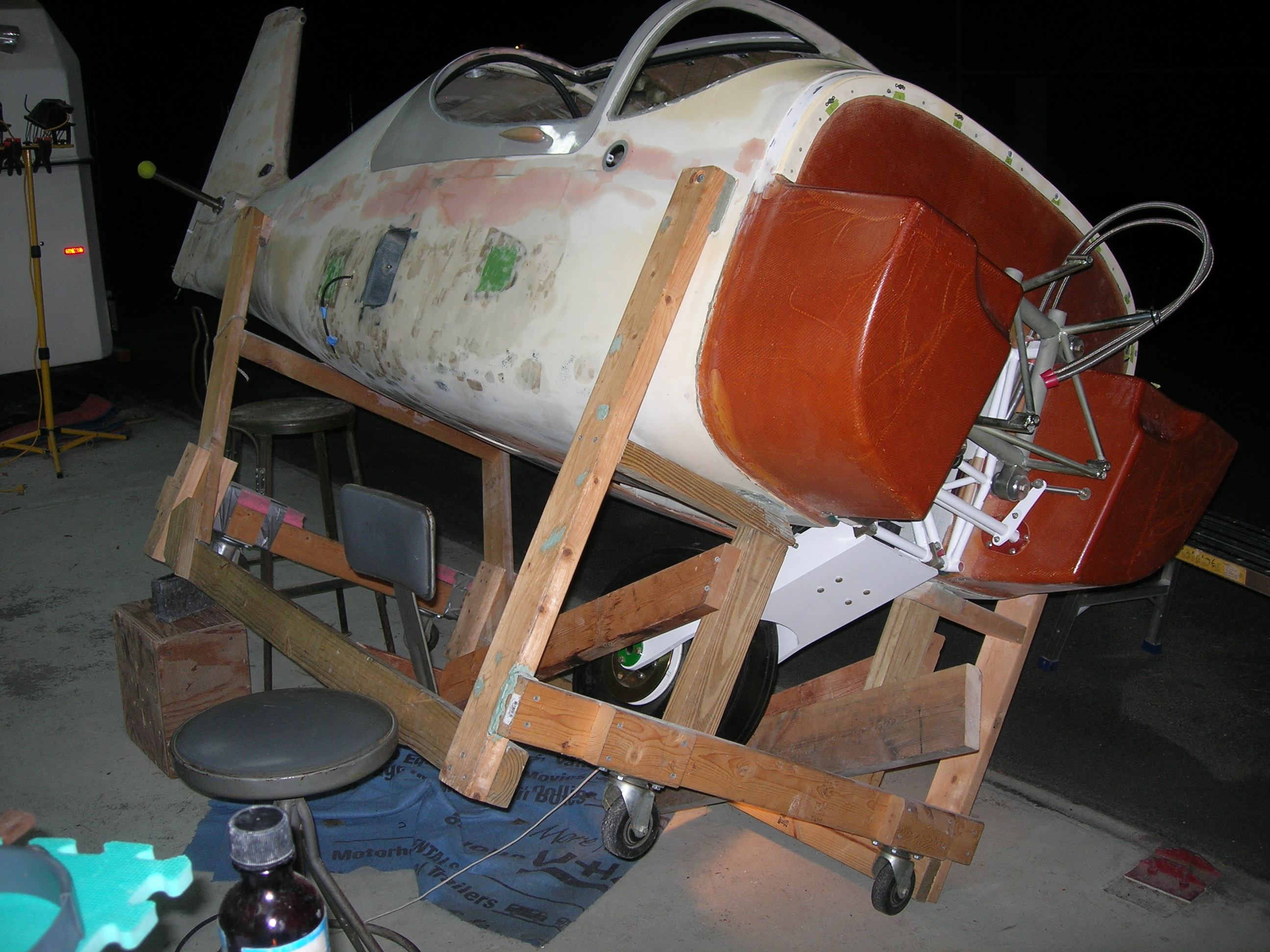

Time to figure warning wire run 1.

Time to figure wire run for throttle lever reed switch, Main gear down lock reed switch and airbrake closed reed switch. Rolling fuse to port helps access.
Y10-06-13

Date: 06/12/2010
