U3

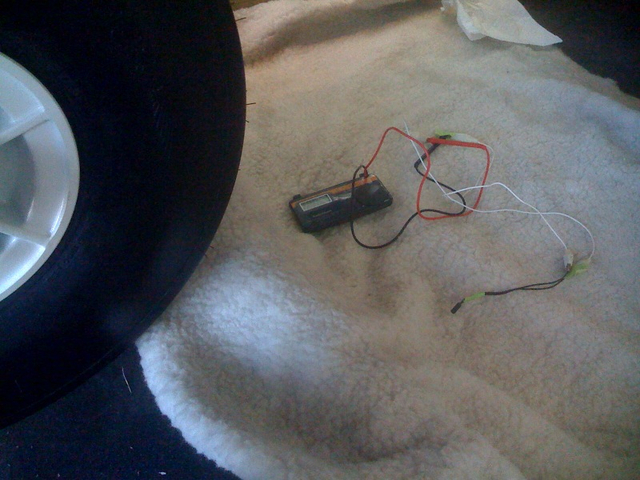

Beeping continuity tester made light work of finding the best place to position reed switch next to the 2 gear down latch, (magnets). 2 stacked magnets proved to make for a very happy operation. When bonding reed switch in place with silicone, will use same tester to find "sweet spot". Y8-10-26
