U9

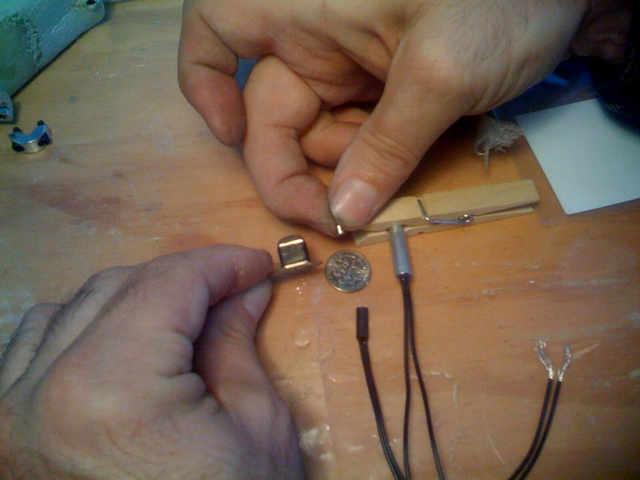

Square magnet on left is for throttle reed switch, 2 very small magnets in other hand will be inserted into main gear down latch for "gear-up" reed switch. Y8-10-26
