BR4

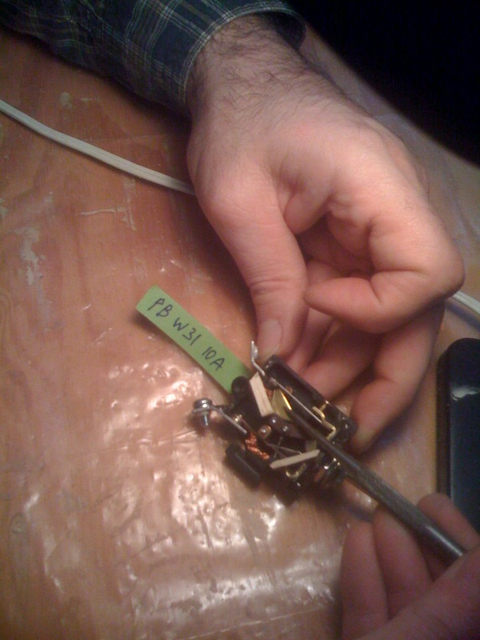

Toggle is on in this picture. I am pointing to a brass latch, notice the latch is resting to the left on a tab that is riveted onto the bimetal arm. You can see contacts closed on lower left.
Y8-12-09

Date: 12/09/2008
