Running and connecting "Fat" wires 3.

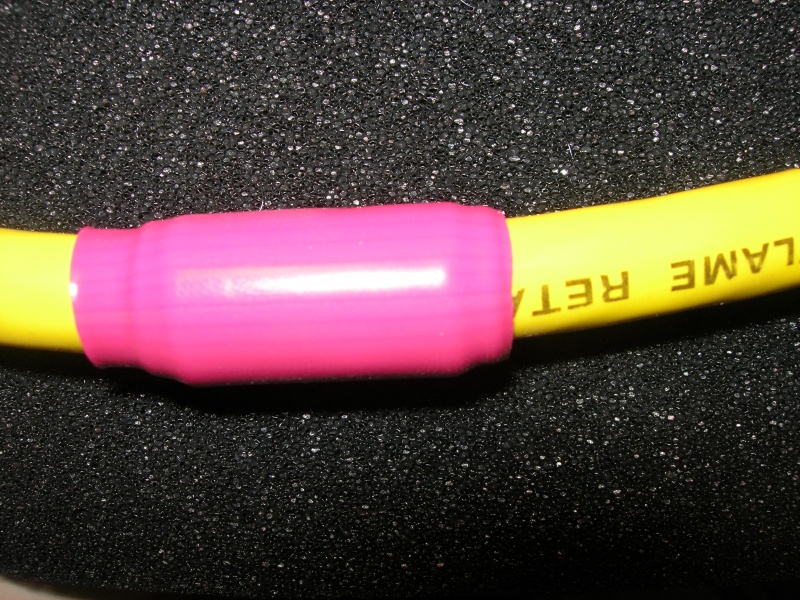

Then cover with a third piece of adhesive lined heat shrink.
This three ply cover is for a critical spot in the Starboard headrest where ground is close by (this wire is positive).
