Port_hdrst_11

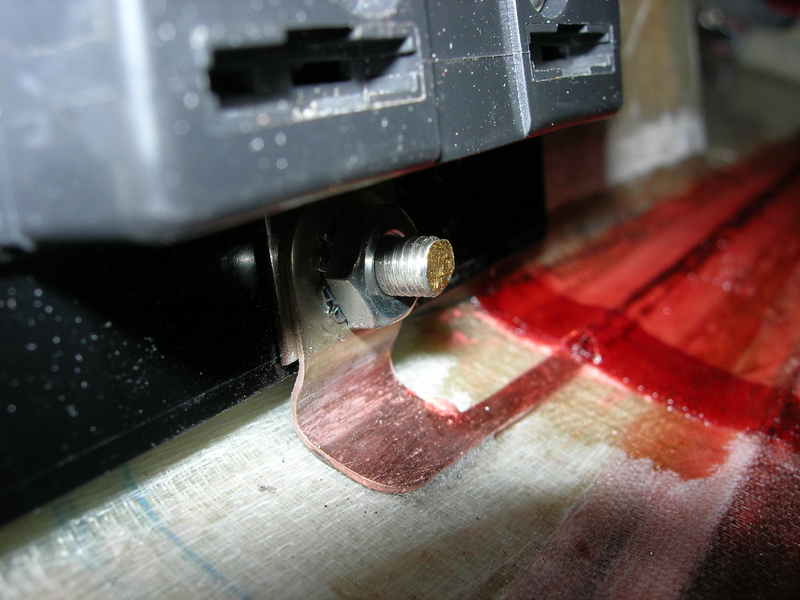

Port headrest fuseblock connection detail. Silver plated contact area, nut with star washer. Stud cut down a little. You can see 2 additional plies of glass reinfrocement on thin wire stress point. That is a total of 3 plies. Bias ply really makes much stronger.
Y9-03-14

Date: 03/11/2009
Size:
Full size: 2592x1944
