Vertex_ant_17

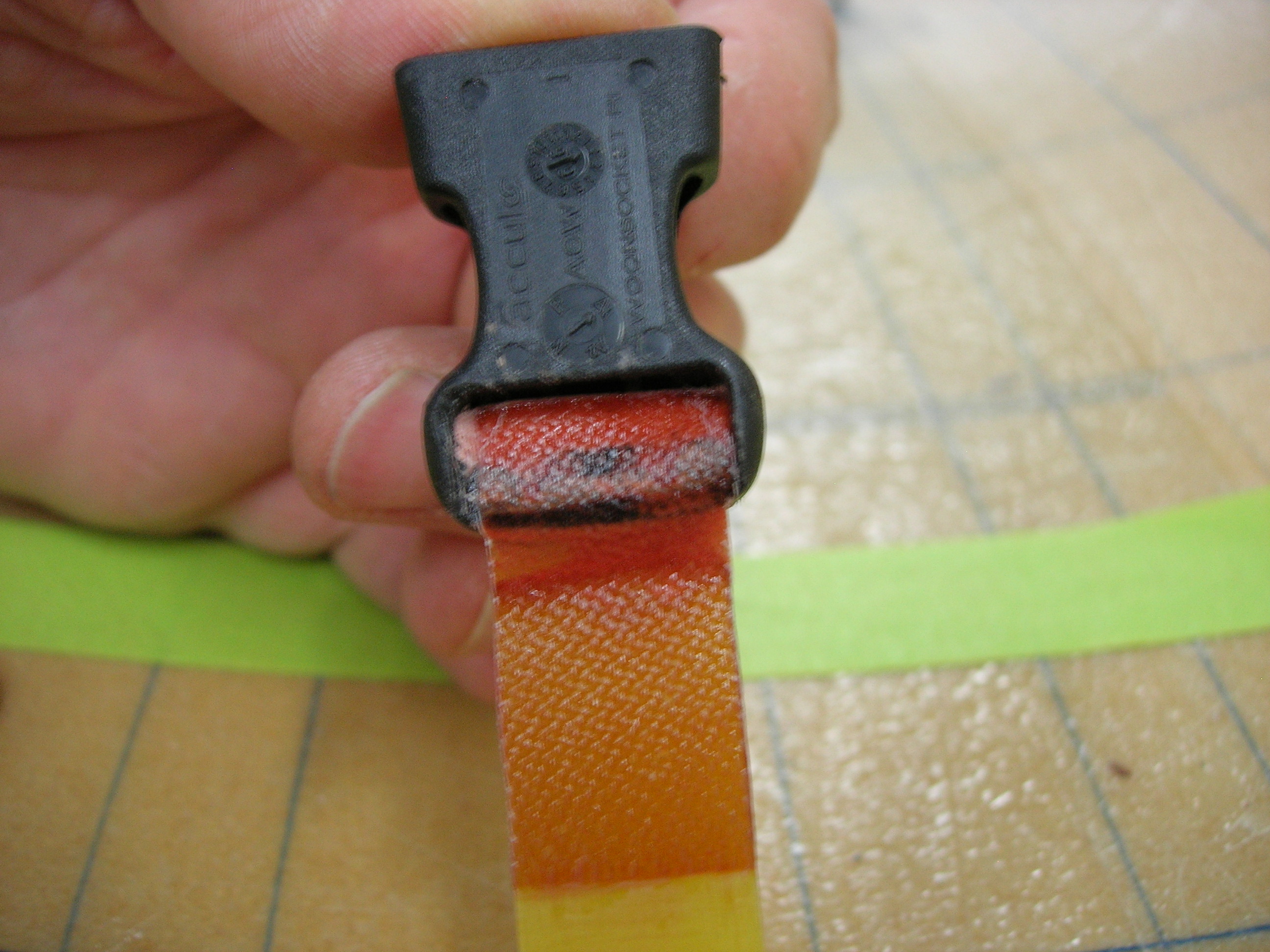

Before the two torx screws were installed, clip was JB KWIK welded to G-10. As you can see on this side floxed and two plys of very thin model aeroplane cloth with aeropoxy/30 minute. 1 ply straight, one ply bias.
Y9-03-18

Date: 03/15/2009
