Vertex_ant_2

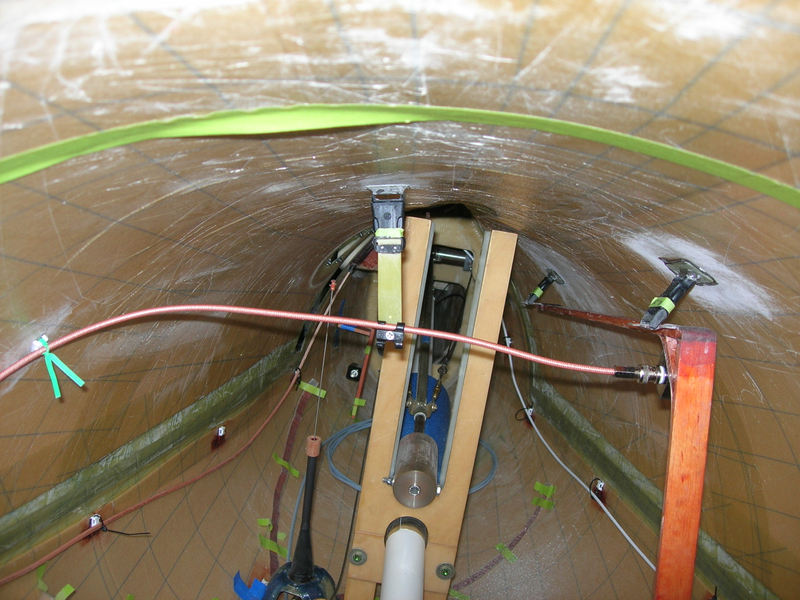

We found that standing off Vertex VX720 antenna from fuse helped reject some strobe noise. Jerry from AAE recommended to do it permanent so we did. The 3 clip halves mounted to the top of fuse you see here are only JB KWIKed in place. They got some glass (and flox) through the web slot onto the fuse.
Y9-03-18

Date: 03/15/2009
