Vertex_ant_7

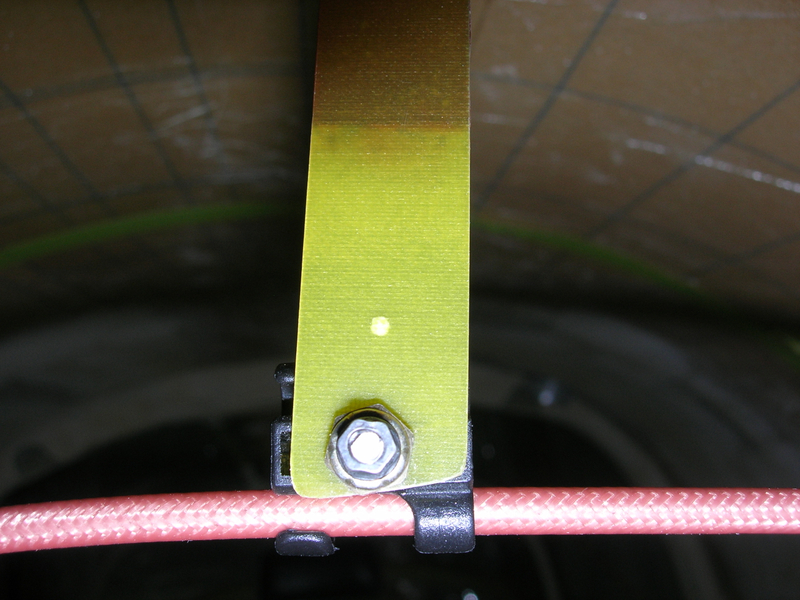

Detail of cable holder shows two nuts to keep tension on plastic holder without loosening when rotated. Just a nylon locknut would loosten if turned the wrong direction. Here it is rotated to allow cable insertion.
Y9-03-18

Date: 03/15/2009
