Strobe_noise_4

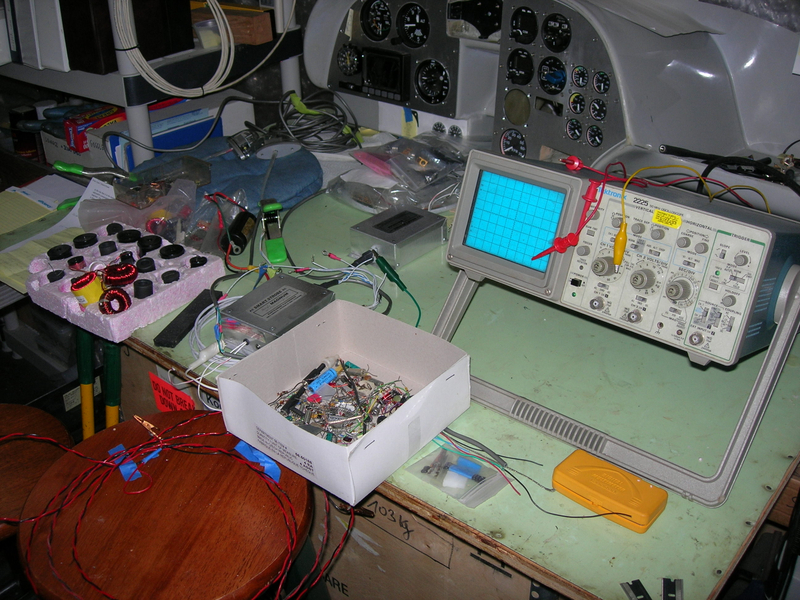

Wayne's Dad Art (80) fills up our bench with scope, chokes and, capacitors. Some notes:
Best use 18 gauge supply wires or you may not get second flash due to voltage drop.
High voltage was not that noisy. If shield is not grounded to power supply case you get some noise but nothing like what radiates from box or power wires.
Y9-02-21
