Dynon AOA audio pot 1.

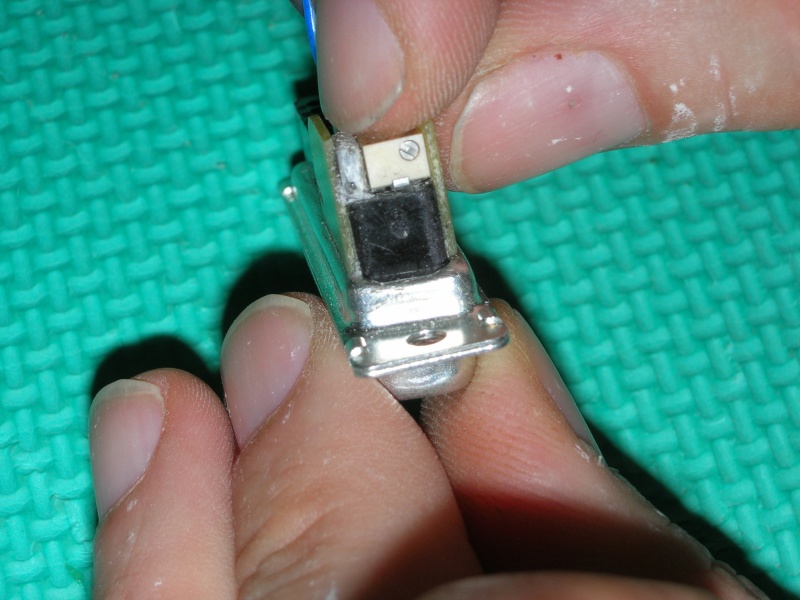

We are plumbing Dynon D10A AOA audio to PMA 4000 audio panel. Need a 10K pot for trimming so descided to mount it in the D-sub connector.
Y10-08-05

Date: 08/04/2010
