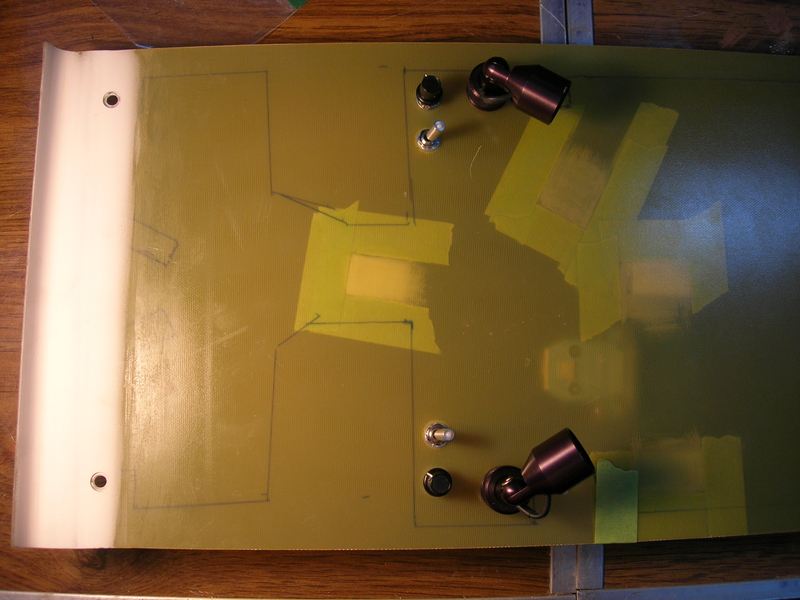

Ceiling panel layout begins

LED reading light stuff (bottom side). We have LEDs on opposite side of occupant to not only avoid shadow from inboard shoulder, it is easier access to LED tipped switch, potentiometer and adjustment of LED.
Y9-03-06

Date: 03/05/2009
