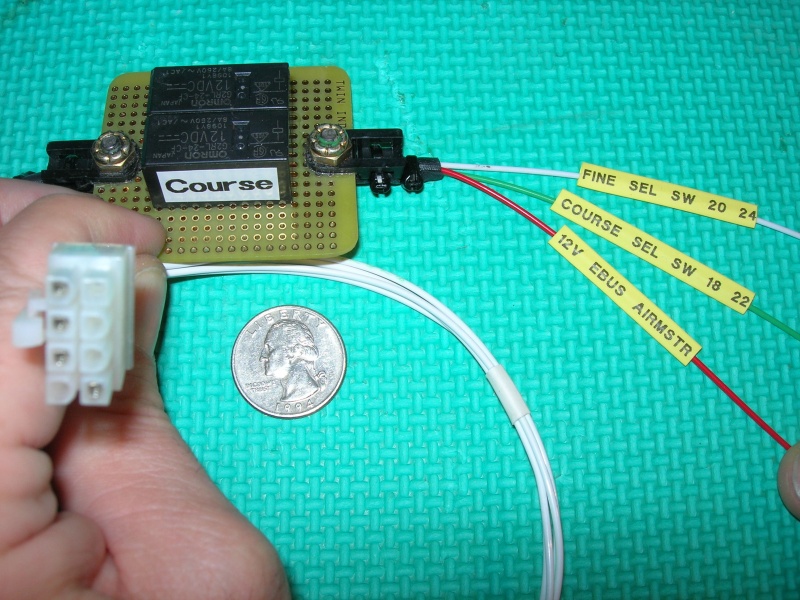

Prop manual control relay board 3.

Relay board is ready to mount.
Boy is a heat shrink printer a nice thing to have laying around (borrowed from local EAA chapter).
Now as far as prop control circuit goes, only need to rework stick switches and circuit should be flight ready!
Y10-06-11
