Prop manual control relay board 2.

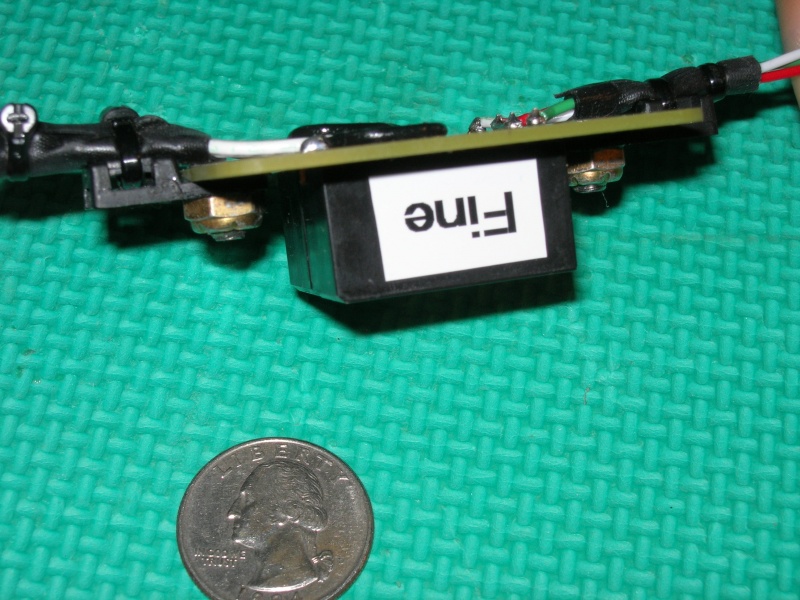

JB KWIK welded Ty-wrap standoff to board upside down!
The reason for JB KWIK and hardware is because I used undersized hardware to hole (slight weight savings).
Wrapped wires with silicone tape then Ty-wrapped with T+B wrap.
