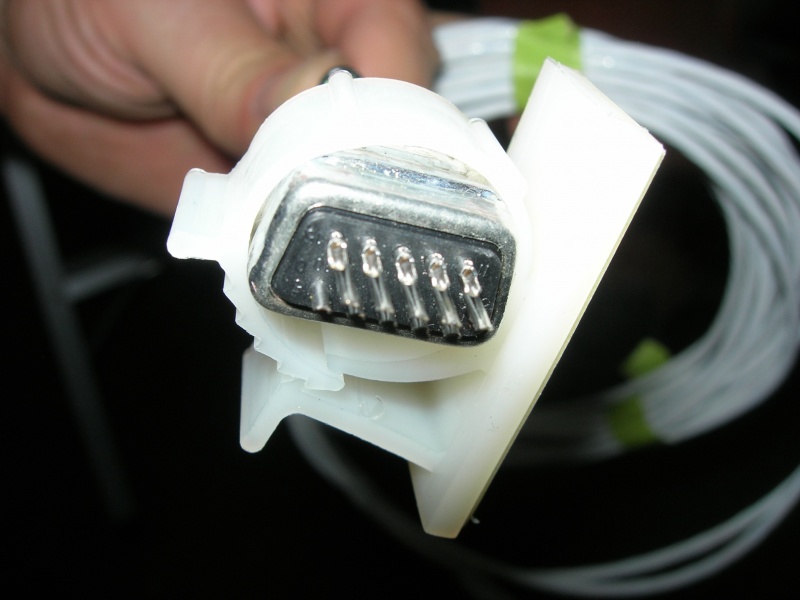

15 pin HD stick grip connectors 4.

We will wrap the connector under the outboard thigh support with a 1 turn of Silicone tape, then hold it captive with this holder that will be bonded to the bottom side of the outboard thigh support.
Y10-11-11

Date: 11/10/2010
