Stick grip 2

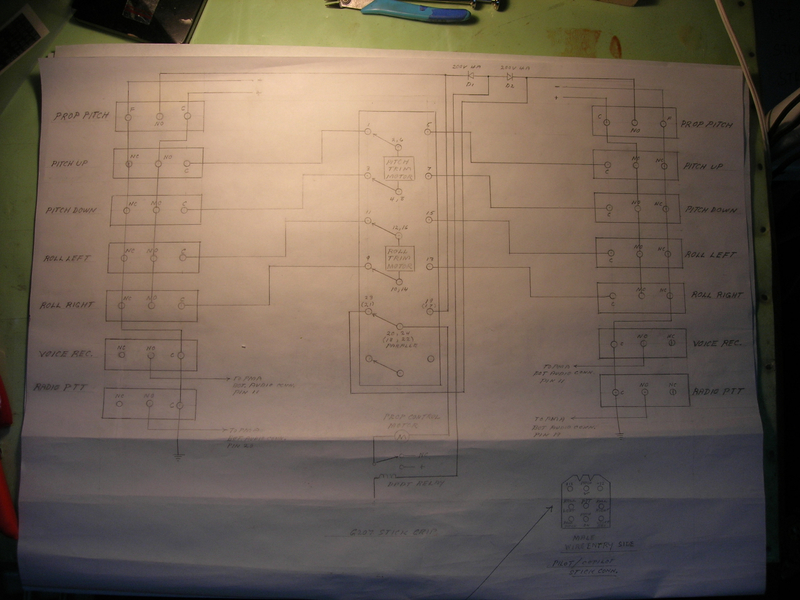

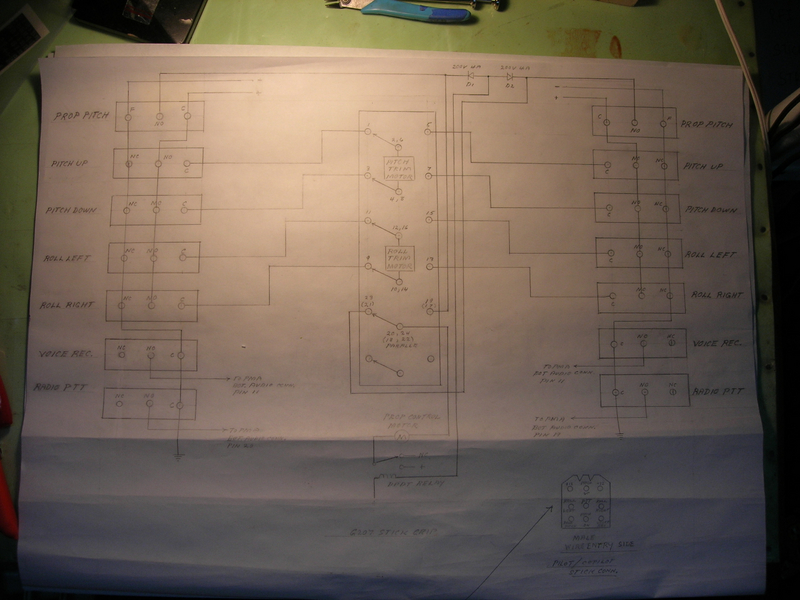

Schematic of stick grips with switch side of plug.
Pilot / Co-Pilot rotary selector switch is from KRAUS & NAIMER.
Managed wiring up Ray Allen stick grip using 1 relay, 2 diodes, a rotary switch and a 9 pin Radio Shack Molex connector to accomplish the following:
****Pitch trim
****Roll trim
****Manual control of Airmaster prop
****Audio panel PTT
****Audio panel recorder playback
****Switch from Pilot to Co-Pilot control of pitch trim, roll trim and Airmaster manual prop control
Y9-03-23

Date: 03/22/2009
