Fin cap 2.

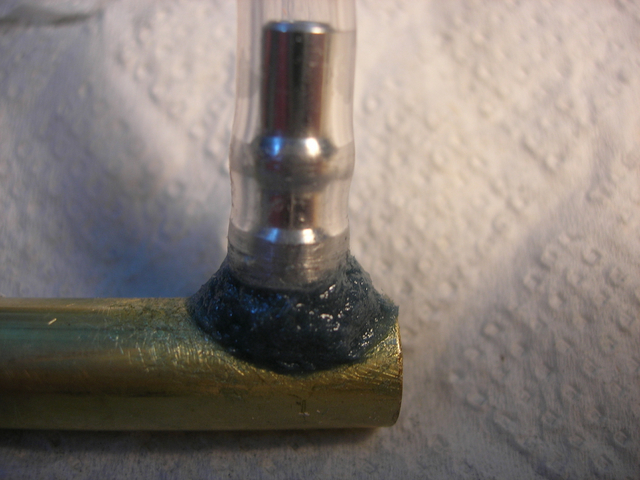

Ilec TE probe came with some sort of epoxy trying to hold nipple in place. Probably 5 minute stuff. Removed it, it was not scuffed at all underneath, went at it with sandpaper and Redux/flox.
Y9-03-23

Date: 03/22/2009
