Fin cap conduit 1.

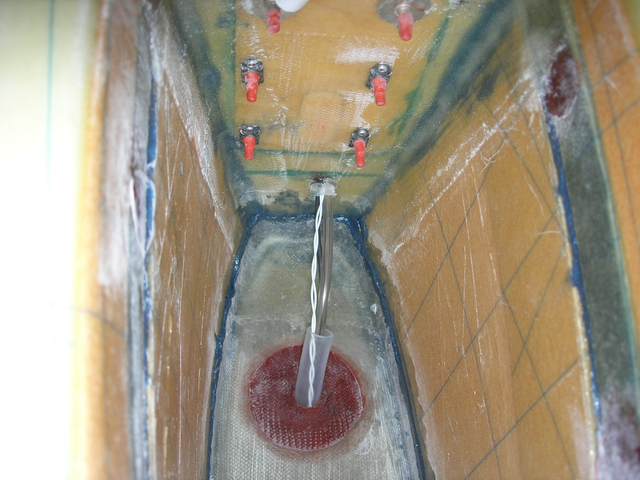

Here is a shot of bottom of lower horizontal fin rib conduit and wires/tube running forward to vertical fin rib.
Ran wires and tube when installing fin cap.
Y9-05-08

Date: 05/07/2009
