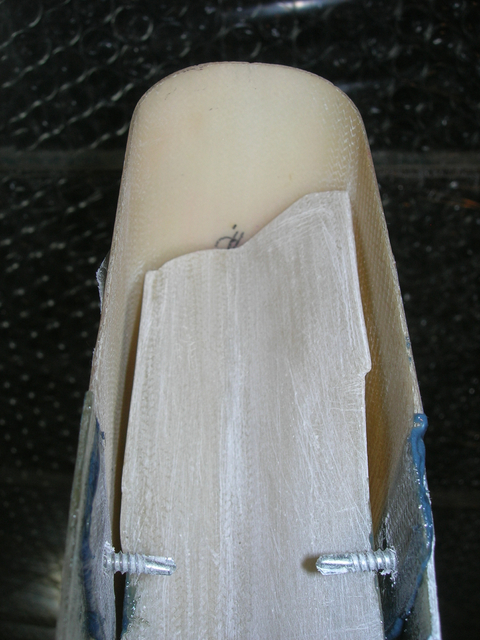

Fin cap install 10.

Mutilated flange on upper sternpost and removed fin cap joggle. After cure will BID in place.
See below album for details ~ page #3:
Top fuse bond on and top wing skin bond on information and "ProgMess".
Y9-05-08

Date: 05/07/2009
