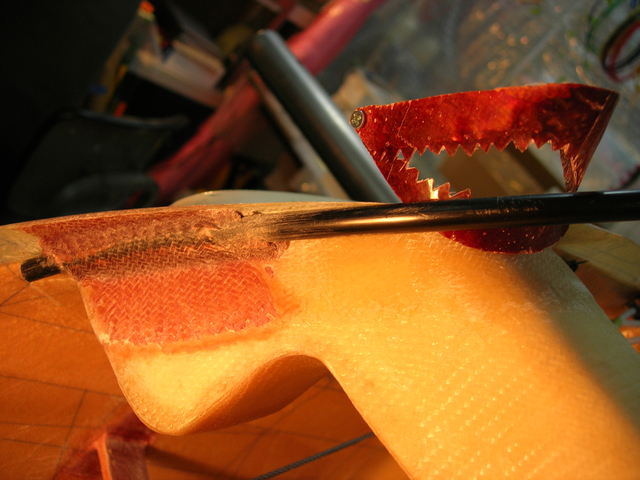

Fin conduit 1.

We moved the Bob Archer black conduit from the 45 degree fuse seam to get further away from transponder antenna and not parallel, also to allow easier 2 BID of corner once top is bonded in place to strengthen mutilation needed to get good top fuse fit.
Corner of neckbrace got corners cut off and 3 BID with floxed corners to allow more mass balance centering cable clearance with down stabilator. See main page "Stabilator Mass Balance >=< Balancing Mess".
Y9-04-13

Date: 04/11/2009
