Fin rib conduit 4.

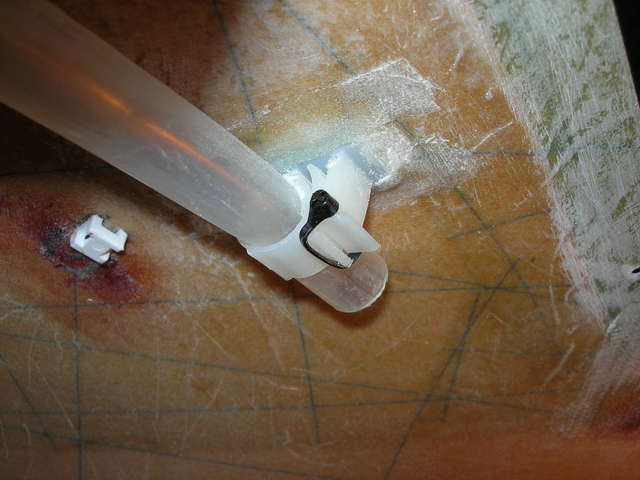

Conduit for total energy tube and camera wires from fin cap come out just aft of 45Â° corner on port side of fuse.
Y9-04-16

Date: 04/14/2009
