CH19_19MOD

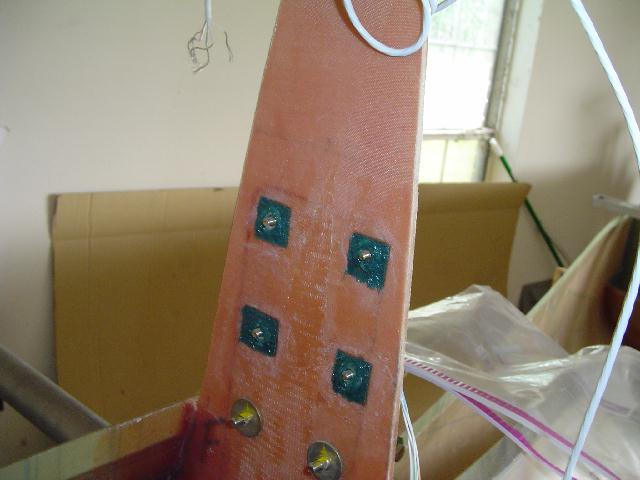

Attached servomotor using 4 MS27039-0808 bolts #8 lock washers 8-32 blind nuts using Araldite to hold in place. A number of these servo units have required maintenance. This will allow easier removal from tail section once aircraft is completed.

Date: 12/31/1969
