Flap_Motor_Installation_06

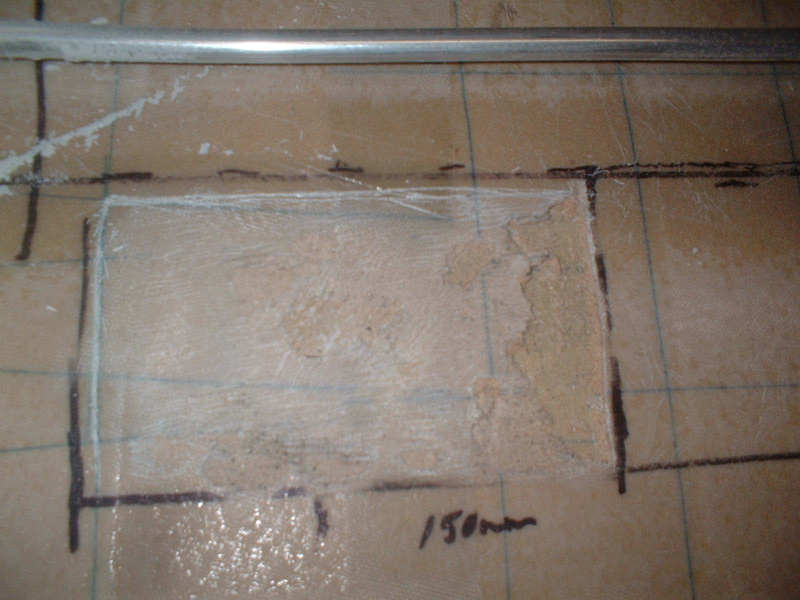

Chopping out the foam center in order to insert the plywood reinforcement.

Date: 11/27/2007
