31_G

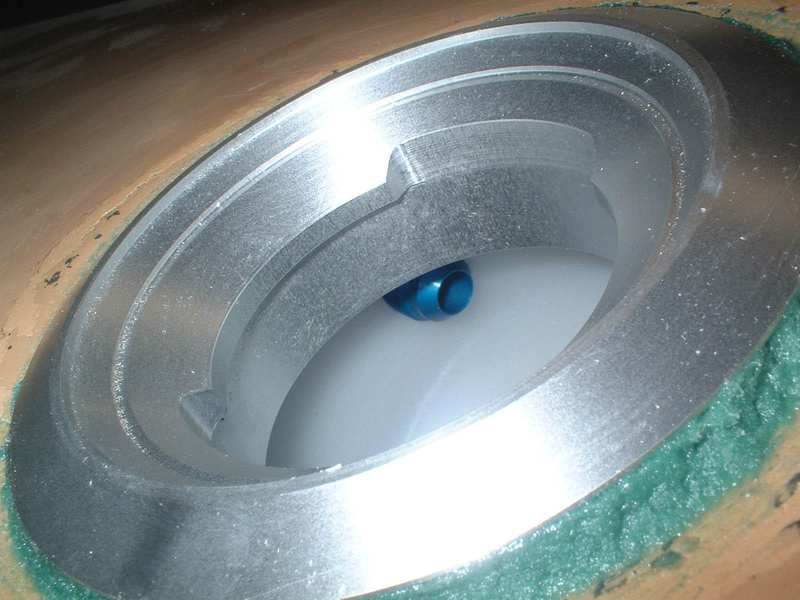

Put in the other vent. Here you can see the tip of the fitting inside the neck. If all goes well, any excess fuel sloshing around would go out here, as well as letting air escape from the tank.

Date: 06/19/2009
